USS

LST499

Specifications:
  • Displacement:
    1,625 t.(lt)
    4,080 t.(fl) (sea-going draft w/1675 ton load)
    2,366 t. (beaching displacement)
  • Length: 328′ o.a.
  • Beam: 50′
  • Draft:
    light: 2′ 4″ fwd, 7′ 6″ aft
    sea-going: 8′ 3″ fwd, 14′ 1″ aft
    landing: 3′ 11″ fwd, 9′ 10″ aft (landing w/500 ton load)
    limitin:g 11′ 2″
    maximum navigation: 14′ 1″
  • Speed: 11.6 kts. (trial)
  • Endurance: 24,000 miles @ 9kts. while displacing 3960 tons
  • Complement:
    13 officers
    104 enlisted
  • Troop Accommodations:
    16 officers
    147 enlisted
  • Boats: 2 LCVP
  • Cargo Capacity: (varied with mission – payloads between 1600 and 1900 tons)
    Typical loads:
    1. One Landing Craft Tank (LCT), tanks, wheeled and tracked vehicles, artillery, construction equipment and military supplies. A ramp or elevator forward allowed vehicles access to tank deck from main deck
    2. Additional capacity included sectional pontoons carried on each side of vessel amidships, to either build Rhino Barges or use as causeways. Married to the bow ramp, the causeways would enabled payloads to be delivered ashore from deeper water or where a beachhead would not allow the vessel to be grounded forward after ballasting
  • Armament: varied with availability when each vessel was outfitted. Retro-fitting was accomplished throughout WWII. The ultimate armament design for United States vessels was:
    2 x Twin 40MM gun mounts w/Mk. 51 directors
    4 x Single 40MM gun mounts
    12 x single 20MM gun mounts
  • Fuel Capacity: Diesel 4,300 Bbls
  • Propulsion:
    two General Motors 12-567A, 900hp Diesel engines
    single Falk Main Reduction Gears
    three Diesel-drive 100Kw 230V D.C. Ship’s Service Generators
    two propellers, 1,700shp
    twin rudders
History
LST-491 Class Tank Landing Ship:
  • Laid Down: 3 September 1943, at Missouri Valley Bridge and Iron Co., Evansville, IN.
  • Launched: 5 November 1943.
  • Commissioned: USS LST-499, 10 January 1944, LT, Elmer F. Witte USNR in command.

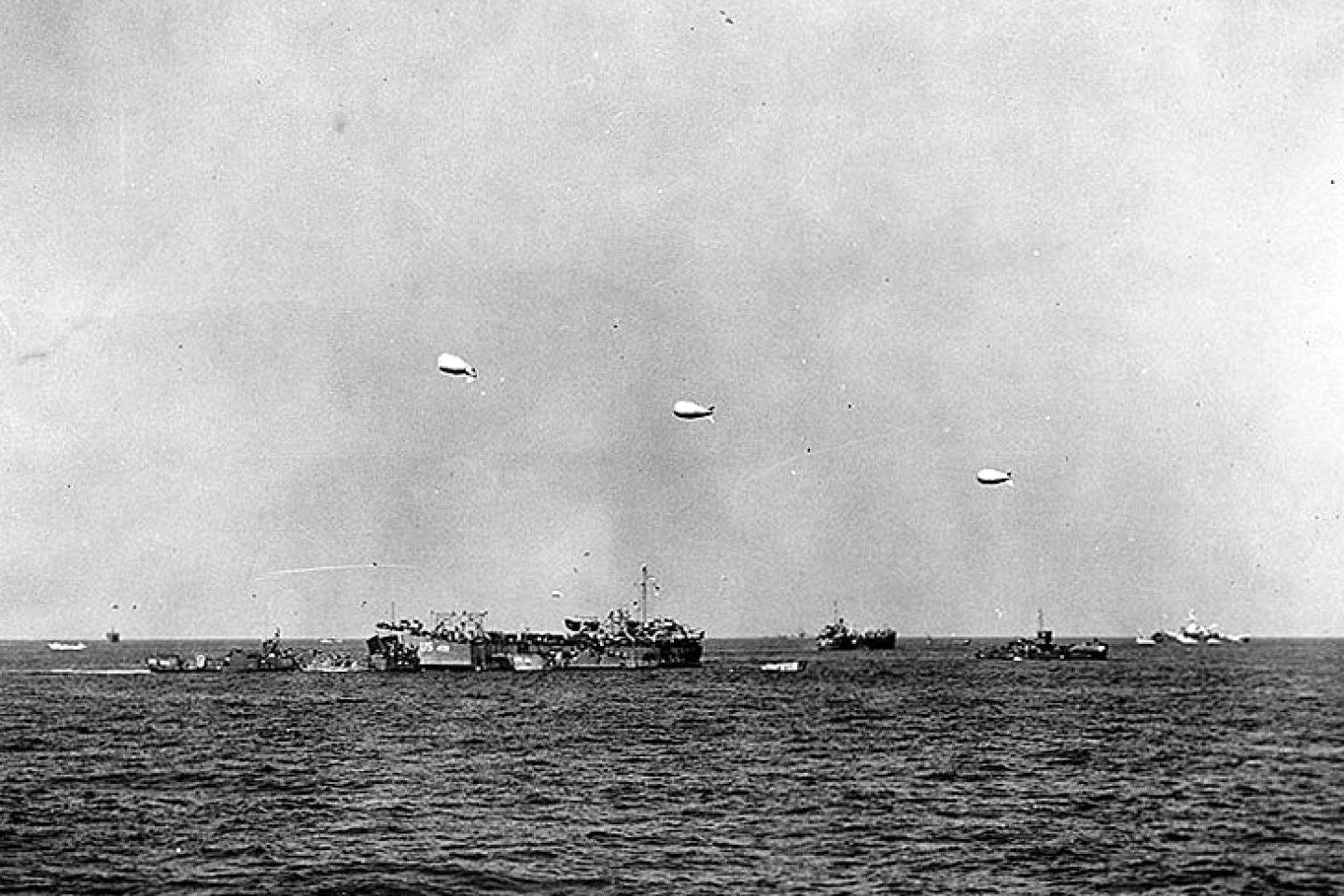

  • During World War II: During World War II USS LST-499 was assigned to the Europe-Africa-Middle East Theater and participated in the Invasion of Normandy, June 1944.
  • Action: Sunk as a result of enemy action, 8 June 1944.
  • Deregistered: Struck from the Naval Register, 22 August 1944.
  • Commendations: USS LST-499 earned one battle star for World War II service.
Commanding Officer(s)
  • LT. Witte, Elmer F., USNR
    10 January 1944 – 8 June 1944
CREDIT(S): Data Source and images courtesy of NavSource Naval History and the US National Archives.
